Halitosis, a universal emc machine configuration wizard?
Very short readme:
A gui wizard to configure emc hal for any generalised serial cnc machine: that is it guides the user to enter
required parameters for a machine (joint geometry, joint drive control, joint sensors) and creates a complete
hal configuration along with virtual control panel and gui simulation.
This is my attempt to create a universal emc configuration wizard, it will not be a successful attempt as
i dont have time to make it so, but it may be a good start point for someone else to continue to improve
I got three robot arms on ebay for 85 quid and needed to control them (none came with the
controllers), i decided to use emc and some l293 chips to drive the motors via the parallel port.
It seemed like a good idea to create something to
help me generate the emc kinematics and hal config files (this was of course a fucking stupid idea as i guess
writing config files would have taken 4 hours, whereas i have wasted probably 40 hours on this gui system)
I got the robot arms in July 2010, this readme was started august 25th 2010, i guess the code will be released
within a week..
Write some python code, read the emc docs, ask some questions on the #emc irc channel, solder up some
buttons to test each joint drive (jog forward, jog reverse, move x text input)
Fix the dhkins.c kinmatics driver
fix the machine simulation creation code
make all the code more object orientated such as servo.py and stepper.py should be subclasses of a general
paramentry type at present stepper was originally coded then servo copy pasted modified to base class and
simplify the code, it way to log and confusing at the moment.
refactor and rethink everything now i know more
fix all the bugs
fix the callbacks
fix the sensors stuff
implement testing of drivers from within the program (use halrun?)
seperate out all the text and lists to different files (keep code seperate from data) e.g. code: stepper.py, data stepper_data.py
possibly seperate out the config writing function to different source files from the gui handling functions?
bla bla bla....
The code purports to do more than it really does, such as creation of the simulated machine is totally brain dead,
most of the stepgen types are not implemented, etc...
If anyone fixes these please send in some patches.
Current state of development
I am not sure i should be releasing this code to the public as it may reflect badly on my skills at programming.
That said this is really only a hack project and almost every aspect of it has been learnt from scratch over the
last month and a half in my spare time, so I tell myself people will understand the totally nuts code in some
sections of program.
Its really just a sketch and proof of concept, and many ideas have been started then discarded yet remnants
are still left in the code.
The code has got to a stage where it pretty much does what i need which is configure etchservo type drives and
quadrature type stepper drives.
It all really needs a refactor, but this being open source i doubt you will get any improvement unless someone
else picks up this project or someone sponsors its development or sends me some nice free hardware that i have to
integrate with the code.
Releases should be named in the format: halitosis-yyyy-mm-dd.tgz
though i get the feeling this may be the only release?
The latest version will always be linked to as halitosis_latest.tgz
There is so much that i should have done but have not, years ago i would probably have done this in half the time and twice
as well, but i seem unable to concentrate in my old age.
Basically the code is a hack and a learning experience for python and robotics, both of which i have never studied
or used before, so please forgive errors.
A quick list:
basic instructions are:
click buttons and configure things.....
More detailed instructions:

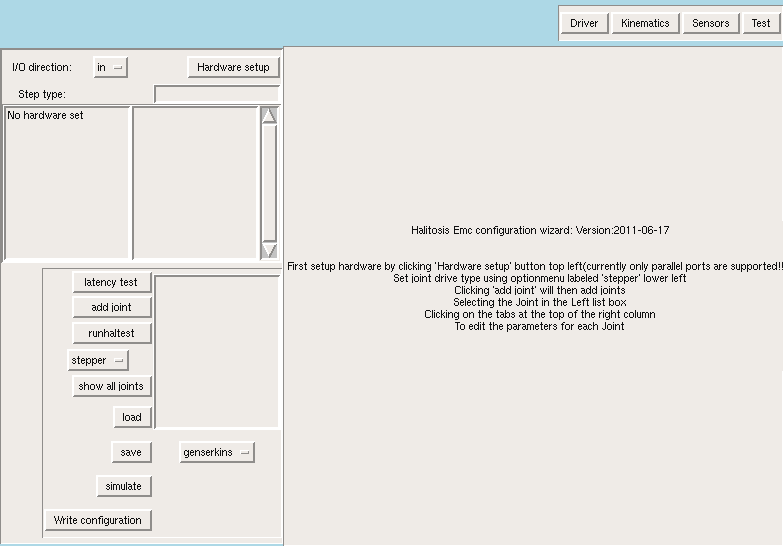

the first screen shot shows the general layout:
top right is the per joint configuration type options:
clicking on these buttons will change the information (driver, kinematic, sensor) in the window pane below.
The left side of the window is the hardware input/output listbox the option menu can be set to in or out to show the
pins available and their settings. The "Hardware" button selects the hardware driver configuration and clicking on
this allows configuration in the right hand window pane. Once Hardware is setup the listbox will display all available
pins for IO.
The Pane below the Hardware IO list box is the main joint creation and selection area. A new joint can be created by
clicking the "add joint" button, but the type of drive needs to be selected first by selecting "stepper" or "servo".
Once a joint is created it will be listed and can be selected in the listbox pane on the right of the buttons.
Once all joints have been created and configured the "complete" button should be clicked to save all the emc hal
configurations and the program will then exit.
the hal configuration will be written to files named "test"
each joint has a drive (servo or stepper motors) that requires hardware in/out configuration normally this
is just output pins on the parallel port
each joint has geometry ralative to another joint on the machine this geometry is defined using
devanit hartenberg parameters (note that you must specify which joint the geometry is relative to)
each joint has sensors linked to it these may be
or other sensors like video camera sensors
(I have not really bothered with looking at this as i dont have time, but the video webcam view should work).
I have left it in place for other to experiment with the use of opencv (open computer vision)
I have also started messing with the genserkins driver to allow correct and full dh parameter configuration and
motion controlled by emc. Of course that is totally unfinished as i did not really need it for the robots i was
Distribution and support
Basically this is an unfinished half assed piece of shit, but it did what i wanted and you are getting to use it for
free so you should be grateful, your job to repay me for my generosity is to improve what i have left you or give
something else of use to the world.
I hope this software will help someone else, but i really would prefer that others dont waste my time asking for help,
you are welcome to try and get help if you see me on irc but please dont email unless you have bug fixes or other
Please ignore spelling and grammatical errors as english is not my first language.
please ignore most of this rambling bullshit!
Its written in python (because thats what most other emc tools are written in) which i had never used
before starting this project
It is about 30 hours programming and 10 hours thought and research so far. all development was done in the
standard emc ubuntu8.04 live distro installed to a vmware virtual machine.
The concept is that the wizard shows lists of connections required and only allows the user to connect pins correctly.
it configures the machine on a joint by joint basis, in terms of kinematics, driver, and geometry and any
number of joints can be added
it automatically creates all relevant emc configuration (virtual controls, simulated machine, machine
kinematics, servo or stepper hardware controls)
it should be extensible for new control types as i tried to create parameter entry screens that take lists
of parameternames and value ranges all configuration parameters are defined as lists.
Slightly more in depth overview of the extent of code development:
The idea was to create a complete universal emc configuration wizard, unfortunatly i dont have time to
complete the idea, currently I have only completed the parts relevant to the machines i am working on.
the servo config is really only setup for the etch servo type configuration, and includes encoder input
whcih should be moved to the sensors code.
the stepper config is really only setup for type 2 quadrature stepper drives
the sensors config is not really setup at all, it is really only a skeleton for future work
the hardware config is really only setup for parallel configuration
the kinematics works 'almost' but the simulation code creation is totally brain dead
the code is divided into a number of different files:
- halitosis (the main program loads all the parts and makes the magic happen)
- hardware.py (defines the gui that configures the computer io hardware pins and writes emc configs)
- servo.py (defines the parameters for a servo drive)
- stepper.py (defines the parameters for a stepper drive)
- sensors.py (defines the parameters for sensors (video, limit switches, encoders) )
- paramentry.py (base class for creating gui parameter entry pages other classes derive from it)
- EmcGuiprocs.py (defines some general gui procedures that are used in the program)
- kinematics.py (defines the kinematics that are used in the genserkins defs and also creates a vismach machine simulation model in python)
- dhkins.c (this is totally unfinished and really unstarted the idea was to genralise genserkins for
revolute and prismatic joints adding the theta variable)
- software_install.sh (this is just a script that installs some software that i thought would be interesting and relevant to emc usage)
