Soundproof Doors!

We are the specialists for supplying acoustic and sound proof doors for all types of applications. If you have got a noise control problem through a poorly insulated door then we are the people to contact.

VISION PANELS

Vision panels, glazed in clear 17mm fire and acoustic safety glass, are available on the 35dB doors but not on the 41dB or the 44dB doorsets.

Other options for vision panels are available on request such as wheelchair vision panels.

ACOUSTIC SEALS

Perimeter seals are integrally fitted in the frames and an automaic lift threshold seal at the base of the door leaf. Othr seals may be available on request.

Standard soundproof door Vision panel options

300 x 300mm (sight area)

150 x 700mm (sight area)

ACOUSTIC TEST RESULTS

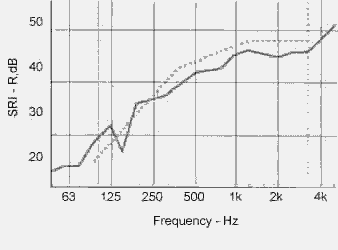

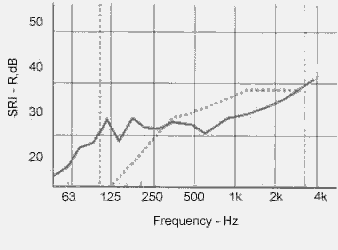

Rw 44dB single leaf acoustic doorset	Rw 35dB single leaf acoustic doorset

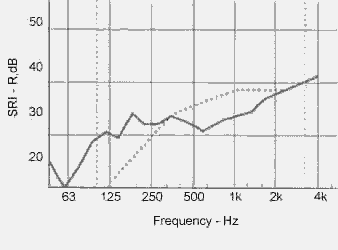

Rw 41dB double leaf acoustic doorset	Rw 35dB double leaf acoustic doorset

APPLICATION

MANUFACTURE

STANDARD NOMINAL SIZES

Length (mm)     Width (mm)

       2400           197/293/581             For overhead ceiling applications, 293mm width panels are recommended

       1200           197/293/581             for ease of handling and fixing.

         800           197/293/581             Tolerances +/- 3mm

         600           197/293/581             Other sizes are made to order on request
