Soundproof Doors!! Acoustic Doors!! Soundproof Doors!! Acoustic Doors!!

We are the specialists for supplying acoustic and sound proof doors for all types of applications. If you have got a noise control problem through a poorly insulated door then we are the people to contact.

Our acoustic timber doors are extremely high performance sound reducing doorsets. These top quality doorsets are available in a wide range of finishes and are fire rated. These acoustic doors are used in areas which require high sound reduction performance such as radio/TV studios, music rooms, interview rooms, cinemas etc.

APPLICATIONS

Our single and double acoustic internal doorsets are fire rated doors available in a wide range of wood and laminate finishes. They are used wherever high sound reduction performance is required between noise sensitive areas such as in private offices and consulting rooms.

Note: The term 'doorset' on this page refers to complete assemblies (including frame, seals, threshold, doorleaf and hinges). To achieve the optimum fire and acoustic performance, the acoustic doors must be supplied and fitted as complete.

SOUND REDUCTION

Acoustic doorsets are high performance constructions available in two standard acoustic ratings:

NOMINAL WEIGHT

  • Single leaf 44dB doorset 85kg
  • Single leaf 35dB doorset 74kg
  • Double leaf 41dB doorset 144kg
  • Double leaf 35dB doorset 123kg

    DOOR FURNITURE

    Doorsets are supplied with hinges and seals pre-fitted. Handles, lockcases etc. are usually supplied and fitted by others to suit customer requirements.

    FINISHES

    Veneers: Standard veneers as below. Others on request.

    NOMINAL SIZES

    Standard sizes

    Single leaf doorsets

    External overall doorframe size:					2110mm high x 1012mm wide
    Door leaf size:								2040mm high x 926mm wide


    Double leaf doorsets

    External overall doorframe size:					2110mm high x 1790mm wide
    Door leaf size:								2040mm high x 850mm each

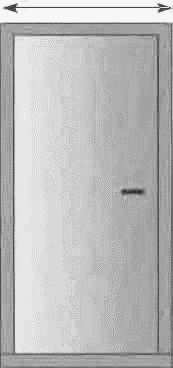

    External overall frame width
    External overall frame height (including threshold)
    Other sizes may be available on request.
    44 dB and 41dB doorleafs are 64mm thick.
    35dB doorleafs are 54mm thick.
    Standard door frame: 90 x 40mm hardwood section complete
    with a 30mm door stop and 90 x 20mm threshold.
    Deeper frame depth can be supplied upon request.

    FIRE RATINGS

    All 35dB doorsets are FD60 fire rated All 44dB and 41dB doorsets are FD30 fire rated. These veneer colours are for indicative purposes only. Due to printing and scanner reproduction restraints, differences may occur between finishes printed above and the actual product. Veneer differences may occur between different doorsets as veneers are cut from differing individual trees.

    Paints:

    Paint primer finish as well as a full range of NCS plus BS and RAL equivalents are available.

    Laminates:

    Print grade laminate as standard but most other proprietary laminate ranges can be supplied at additional cost. More Information - Installation Guide Soundproof doors

    APPLICATION

    MANUFACTURE

    on of the tongue and grooves a perfect finish is achieved when Woodsorption panels are installed.

    STANDARD NOMINAL SIZES

    Length (mm)     Width (mm)



    DESIGN CONSIDERATIONS

    General Physical Data

    Dimensions -				: 2700 x 1200 x 25mm
    Dimensions -				: 2700mm length in White
    Weight -				: nom. 3kg/mē
    Weight -				: nom. 1kg/length
    Finish					: Polished
    Fire Rating
    Acoustic Performance                : See Graph Below



    Noise reduction coefficient 0.92 (i.e. 92%)
    wallsorbtion acoustic performance graph
    Frequency (Hz) Temperature 24'C Relative Humidity : 46%

    Key Soundproofing Benefits


    COLOUR CHART


    Acoustic soundproofing door Installation

    FITTING INSTRUCTIONS Installation
